Smoke extractor VarmoTech PL30CE0170

SKU:

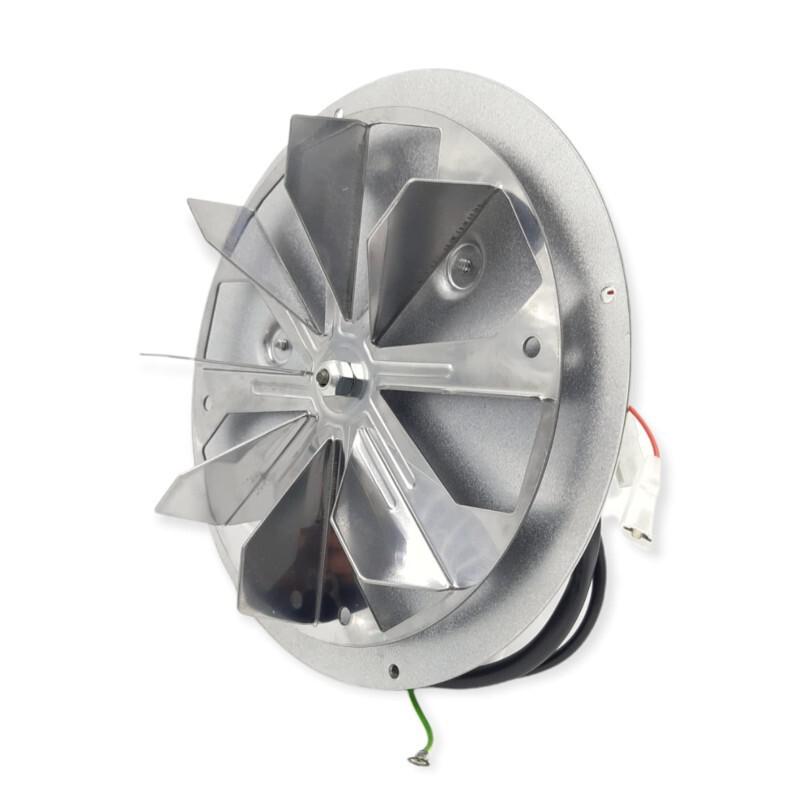

Exhaust fan without housing equipped with Hall effect sensor.
Save 0.00 € (- 0 %)

377,50 € 377,50 € 377.5 EUR

309,43 €

    This combination does not exist.


    Temporary Suspended Discontinued

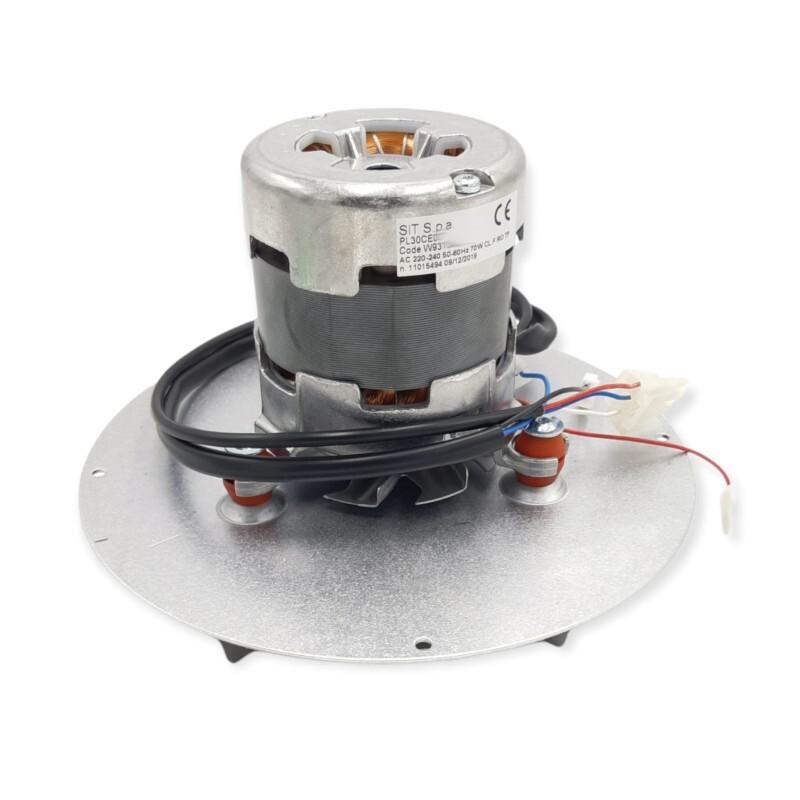

    SITGROUP LN2 NATALINI PL30CE0170 W931300172 smoke extractor has been designed to be used for pellet stoves and biomass boilers.

    Provided with AISI 430 steel rotor and Hall Effect sensor (encoder).

    In compliance with EN60335-1, EN61591, EN60704-3, EN60704-2-13 rules. Insulation class: F - Protection class: I.

    For pellet stoves:

    • CADEL ref. 41451600100 mod. Aquos3 16

    Technical data

    General data

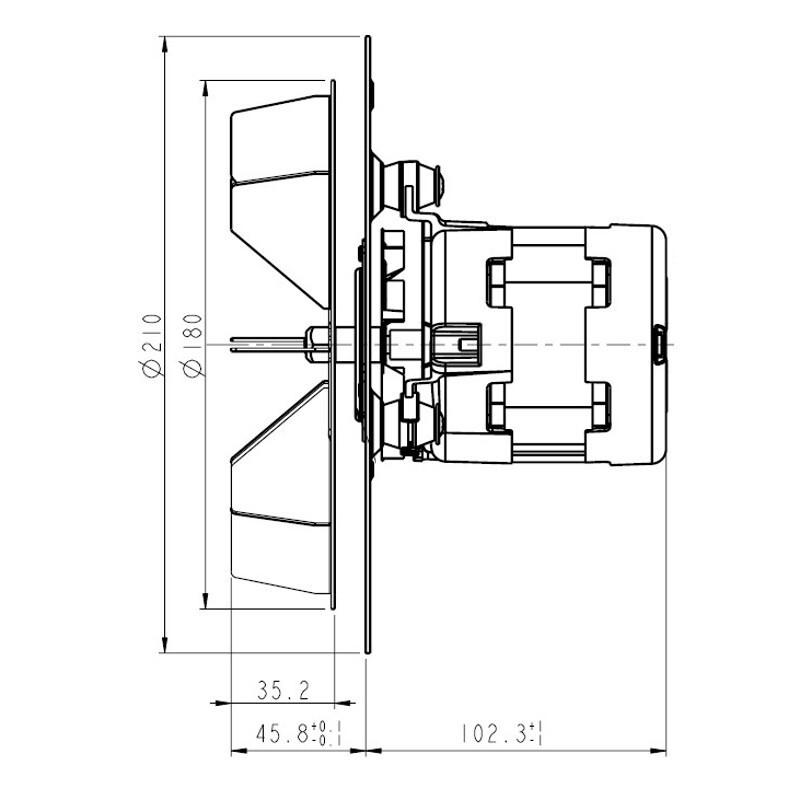

    Impeller diameter180 mm
    Airflow rate285 m3/h
    Revolution speed2.500 RPM
    Pressure generated500 Pa
    Hall effect sensor
    Power supply
    Power consumption70 W
    Power supply230/1/50 V/Ø/Hz
    Physical Dimensions
    Dimensions (L x W x H) 0.0 x 0.0 x 0.0 mm
    Net Weight 1.75 kg
