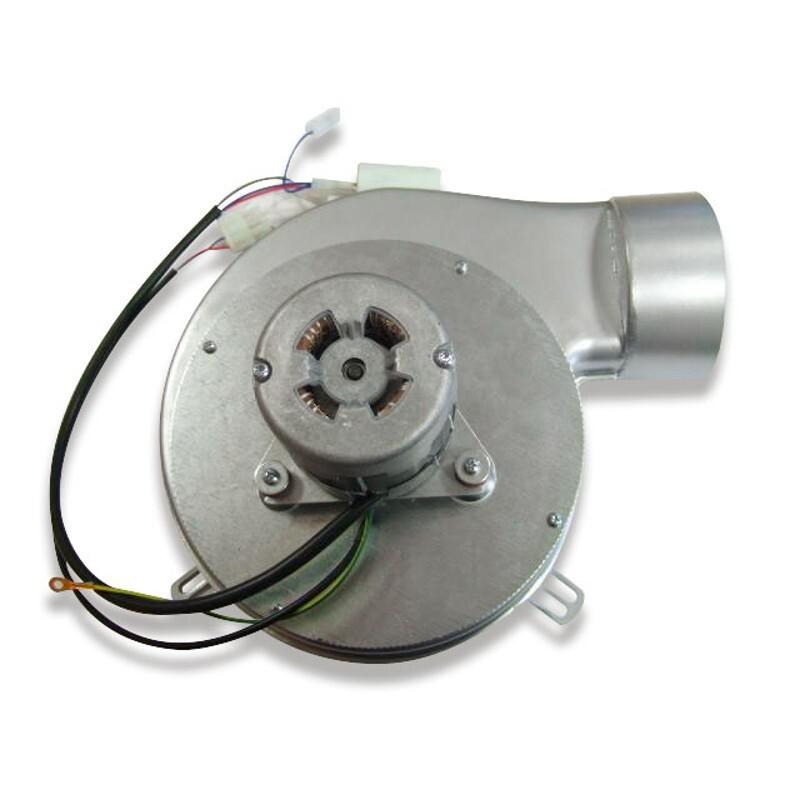

SITGROUP LN2 NATALINI PL30 CE0050 - W931300050 smoke extractor has been designed to be used for pellet stoves and biomass boilers, which range power is from 5 to 60 KW.

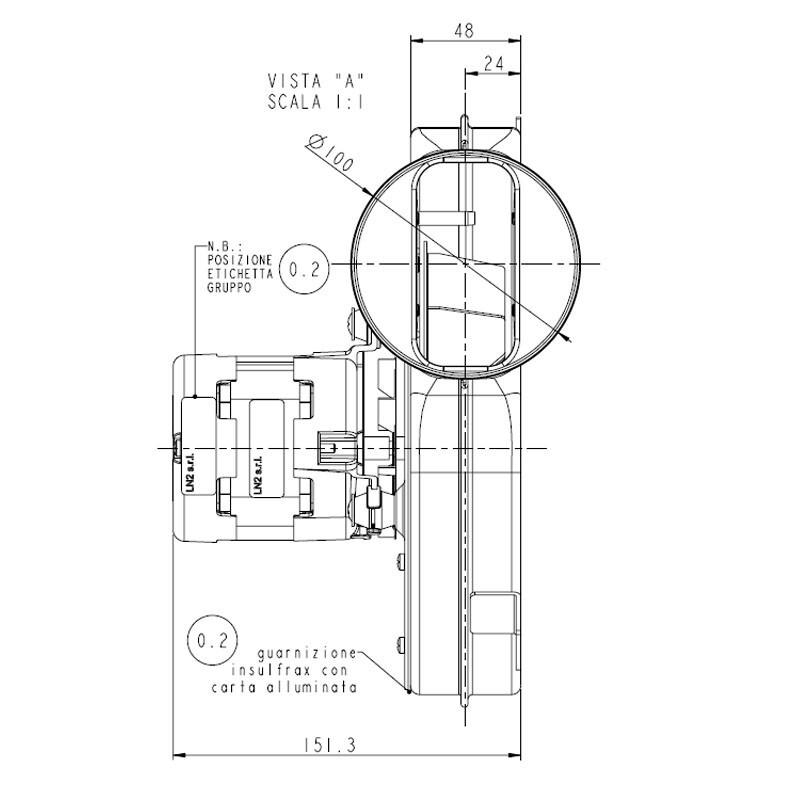

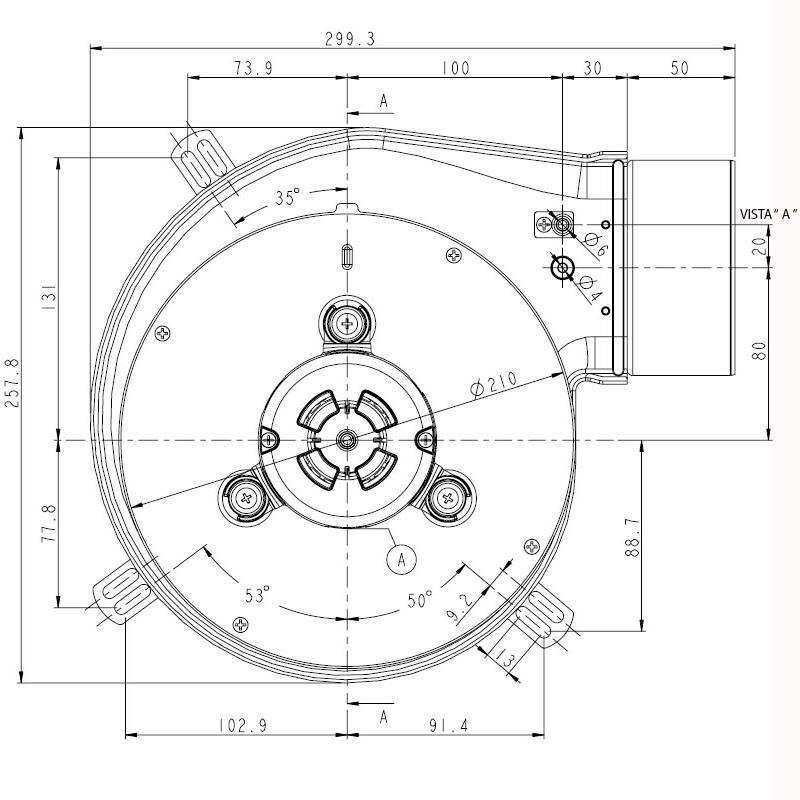

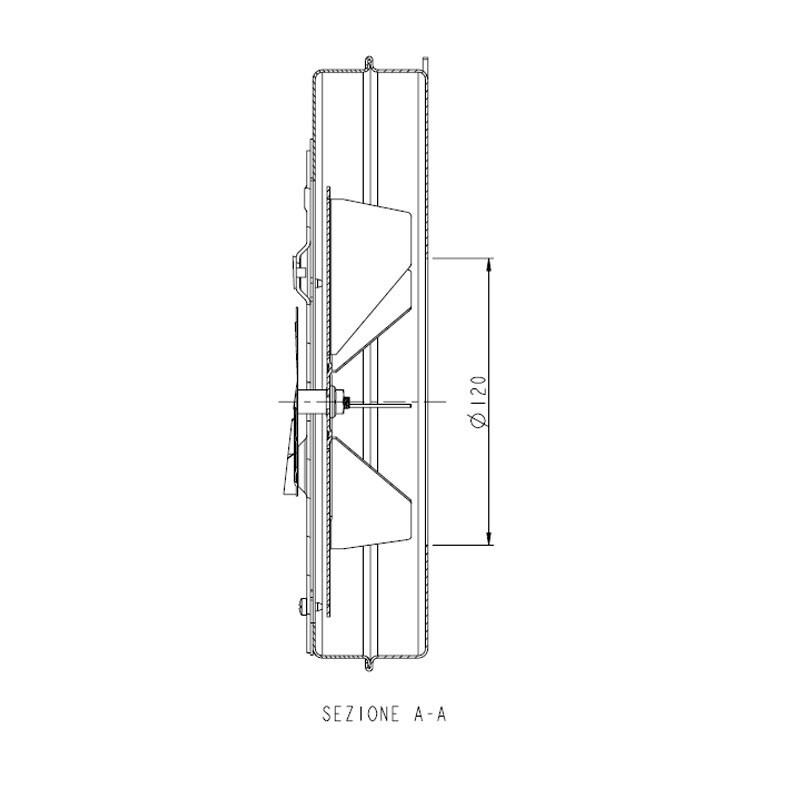

Provided with aluminised steel spiral, which output diameter is of 100 mm, and AISI 430 steel rotor.

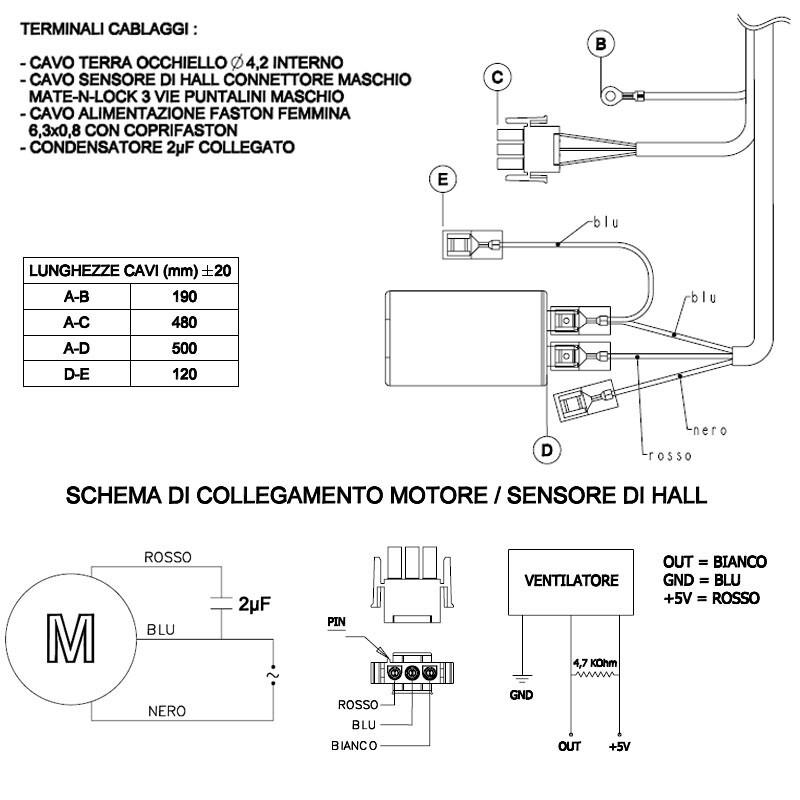

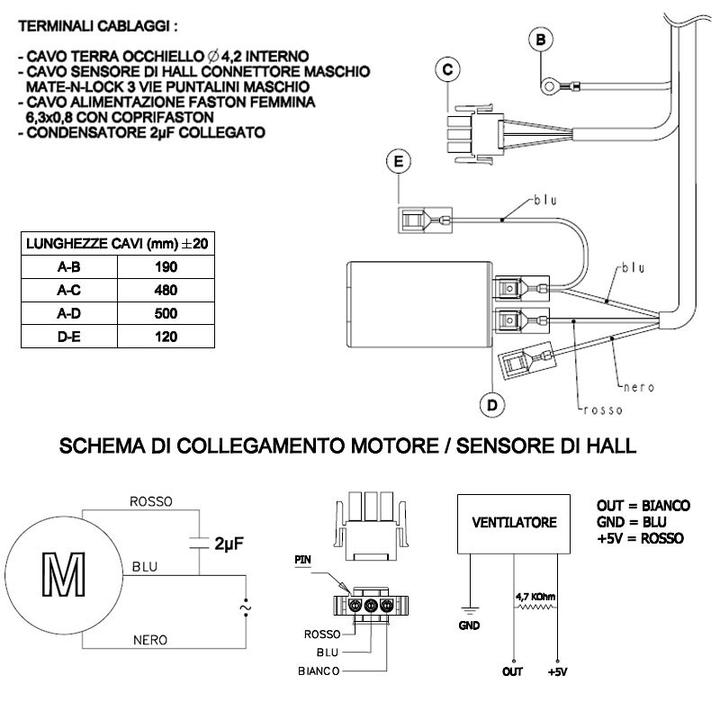

Equipped of input nozzle for the smoke output tube and Hall Effect sensor (encoder).
In compliance with EN60335-1, EN61591, EN60704-3, EN60704-2-13 rules. Insulation class: H; Protection class: I.
For the following stoves:
-
ADLER
-
EDILKAMIN ref. 1034640 mod. Blade
-
KALON ref. 120002 mod. Idro e Airblock
-
MCZ ref. 41451100300 mod. Toba HYDRO 22 - Toba HYDRO 22 HE - Toba HYDRO/S 22
-
RED ref. 41451100300 mod. Compact 18 - Compact 24 - Compact 24 ver.2012 - Compact 35 - Logika 25 - Logika 25 ACS - Logika Refill 25 ACS - Logika Refill 25 - Logika 35 - Logika Refill 35 - Logika 35 ACS - Logika Refill 35 ACS - Lotus
| General data | |
| Airflow rate | 285 m3/h |
| Revolution speed | 2.500 RPM |
| Pressure generated | 500 Pa |
| Hall effect sensor | |
| Power supply | |
| Power consumption | 70 W |
| Power supply | 230/1/50 V/Ø/Hz |
| Physical Dimensions | |
| Dimensions (L x W x H) | 0.0 x 0.0 x 0.0 mm |
| Net Weight | 2.05 kg |
