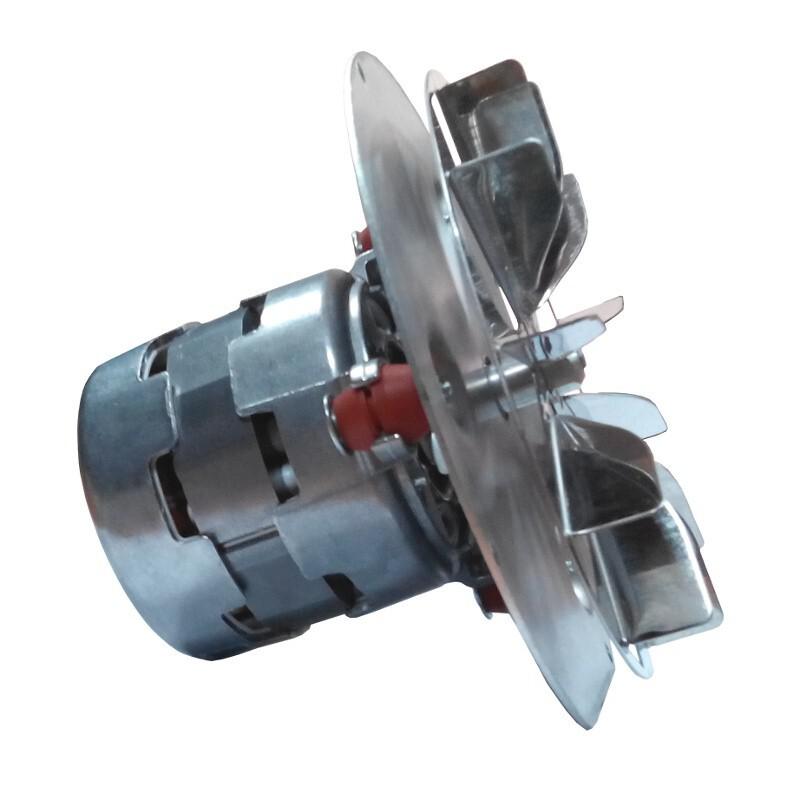

SITGROUP LN2 NATALINI PL20CE0120 W931200120 smoke extractor has been designed to be used for pellet stoves and biomass boilers.
It can be set up in place of EBM RR152/0020A15-4225 - RR152/020A22-604 - RR152/3030LH.
Provided with AISI 430 steel rotor and Hall Effect sensor (encoder).
In compliance with EN60335-1, EN61591, EN60704-3, EN60704-2-13 rules. Insulation class: F - Protection class: I.
For stoves:
- PALAZZETTI ref. 895713870 mod. Angelica - Caterina - Giada da rivestire - Isabella - Letizia - Margherita new - Penelope - Silvia - Slimmy - Tracy
| General data | |
| Impeller diameter | 146 mm |
| Airflow rate | 160 m3/h |
| Revolution speed | 2.500 RPM |
| Pressure generated | 300 Pa |
| Hall effect sensor | |
| Power supply | |
| Power consumption | 35 W |
| Power supply | 230/1/50 V/Ø/Hz |
| Physical Dimensions | |
| Dimensions (L x W x H) | 0.0 x 0.0 x 0.0 mm |
| Net Weight | 1.75 kg |
