Smoke extractor VarmoTech G2E180-CG82-11

SKU:

Exhaust fan for pellet stoves with Hall effect sensor.
Save 0.00 € (- 0 %)

642,60 € 642,60 € 642.6 EUR

526,72 €

    This combination does not exist.


    Temporary Suspended Discontinued

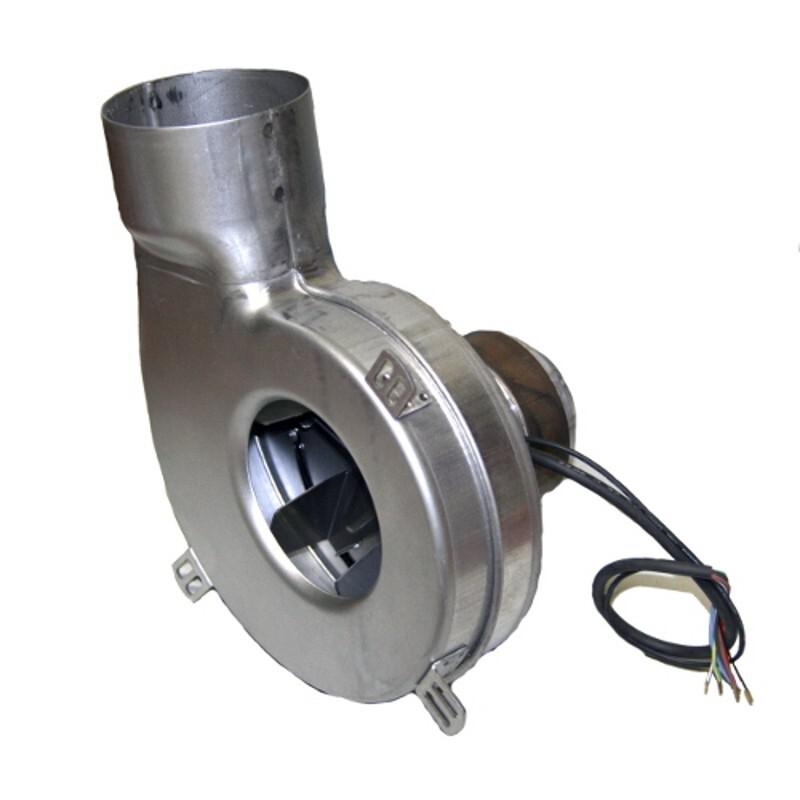

    EBM G2E180-CG82-11 smoke extractor has been designed to be used for pellet stoves and biomass boilers.

    Provided with output diameter is of 100 mm, and INOX steel rotor.

    Equipped of input nozzle for the smoke output tube and Hall Effect sensor (encoder) Insulation class: H.

    For stoves:

    • CAMINETTI MONTEGRAPPA ref. 1040001700 mod. Aktiv 22 - Aktiv 27 - Aktiv 32

    • KARMEK ONE ref. SML587-01 mod. Air force one - Elektra - Londra - Madrid - Marina 24-34 - Marina 24-34 LCD - Marina 24-34 TOUCH - Milena - Nizza

    Technical data

    General data
    Impeller diameter180 mm
    Airflow rate330 m3/h
    Revolution speed2.600 RPM
    Hall effect sensor
    Power supply
    Power consumption65 W
    Power supply230/1/50 V/Ø/Hz
    Physical Dimensions
    Dimensions (L x W x H) 0.0 x 0.0 x 0.0 mm
    Net Weight 2.05 kg
