Smoke extractor VarmoTech G2E152/0020-3030LH-609

Smoke extractor fan with Hall effect sensor.
Save 0.00 (- 0 %)

181,10 € 181,10 € 181.1 EUR

148,44 €

    This combination does not exist.


    Temporary Suspended Discontinued

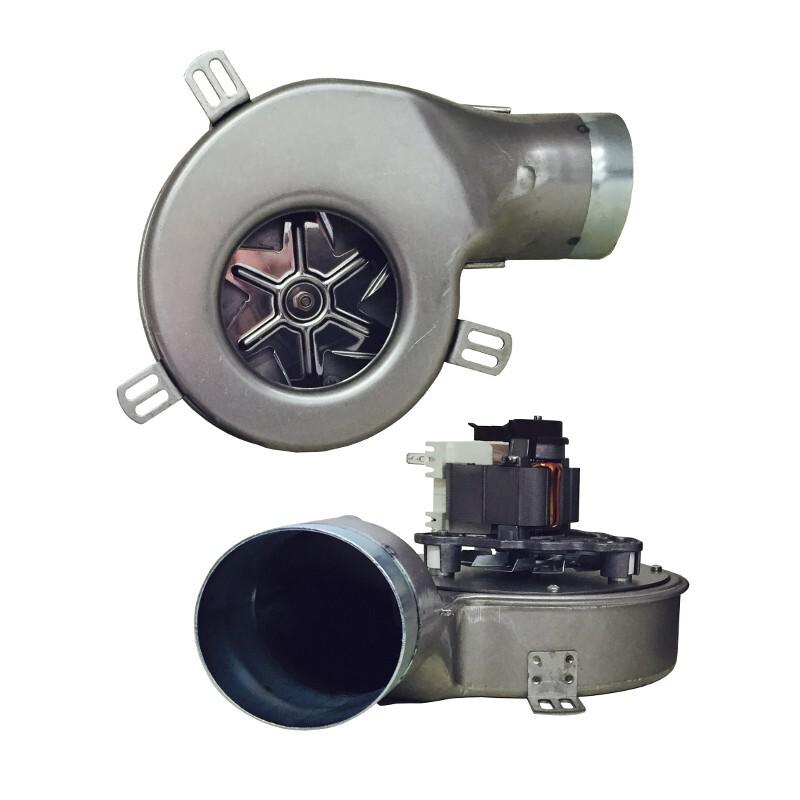

    EBM G2E152/0020-3030LH-60 smoke extractor has been designed to be used for pellet stoves and biomass boilers.

    Provided with output diameter is of 80 mm, and INOX steel rotor.

    It can replace SIT GROUP LN2 NATALINI PL21 extractor fans.

    Equipped of input nozzle for the smoke output tube and Hall Effect sensor (encoder) Insulation class: H.

    For stoves:

    • ANSELMO COLA ref. 599001630 - 453562001 mod. Ambra - Ambra Lux - Aurora - Cupido - Free HR

    • ANSELMO COLA ref. 599004890 mod. Blues

    • BESTOVE ref. PS.101.02 - PS10102 mod. Milo

    • ELITE mod. ELSE95AUB3N-ECO

    • EQUATION mod. EQ10

    • FERROLI ref. 599001630 - 453562001 mod. Lira - Mercurio

    • KARMEK ONE ref. SML506-04 mod. Alice 2018 canalizzata - Asia - Berlino 1 - Bilbao - Bonn - Firenze - Firenze Plus - Ibiza - Ibiza S - Ibiza SC - Leon - Leon S - Leon S Plus - Leon SC Plus - Lisbona - Lisbona S - Lucca Plus - Oslo - Roma - Valencia S Plus - Vigo - Vigo S - Vigo S Plus - Vigo SC Plus

    • LA NORDICA EXTRAFLAME Ref. 002271059 - 2271059 Mod. Giusy

    Technical data

    General data
    Impeller diameter150 mm
    Airflow rate165 m3/h
    Revolution speed2.760 RPM
    Pressure generated280 Pa
    Hall effect sensor
    Power supply
    Power consumption46 W
    Power supply230/1/50 V/Ø/Hz
    Physical Dimensions
    Dimensions (L x W x H) 0.0 x 0.0 x 0.0 mm
    Net Weight 2.05 kg
