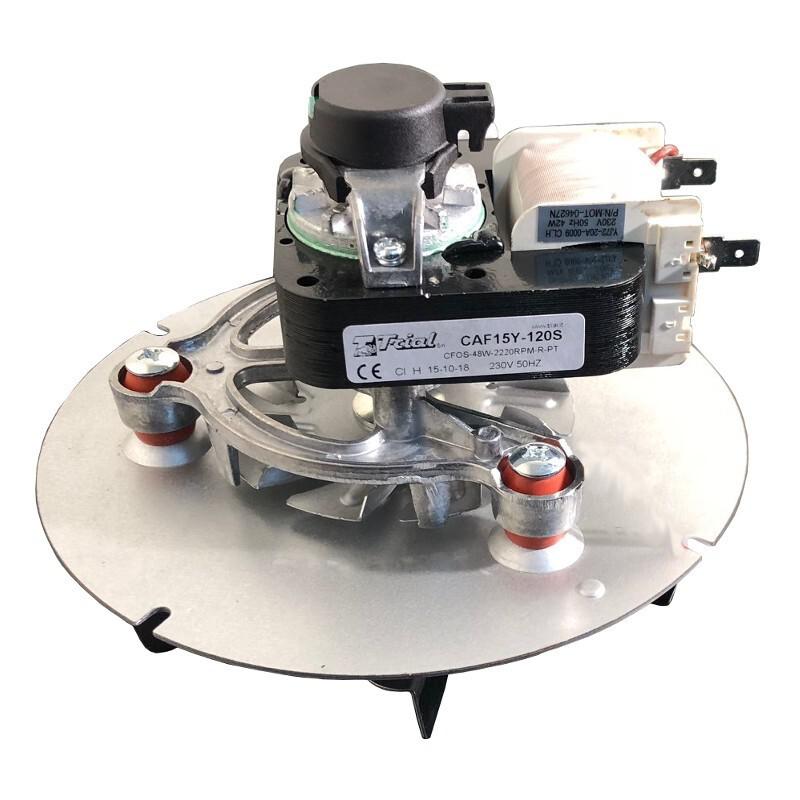

Smoke extractor VarmoTech CAF15Y-120S

SKU:

Exhaust fan without housing equipped with Hall effect sensor.
Save 0.00 € (- 0 %)

79,30 € 79,30 € 79.3 EUR

65,00 €

    This combination does not exist.


    Temporary Suspended Discontinued

    TRIAL CAF15Y-120S smoke extractor has been designed to be used for pellet stoves and biomass boilers.

    Provided with AISI 430 steel rotor and Hall Effect sensor (encoder).

    For stoves:

    • CAMINETTI MONTEGRAPPA ref. 1184018210 mod. LI8 Evo - LS6 Evo - LS9 Evo - NP7 Evo - NP10 Evo - NX10 Evo

    Technical data

    General data
    Impeller diameter150 mm
    Airflow rate225 m3/h
    Revolution speed2.220 RPM
    Hall effect sensor
    Power supply
    Power consumption48 W
    Power supply230/1/50 V/Ø/Hz
    Physical Dimensions
    Dimensions (L x W x H) 0.0 x 0.0 x 0.0 mm
    Net Weight 1.75 kg
