Tangential fan VarmoTech QLN65/3600A2-3038LH

SKU:

Tangential fan with 65 mm impeller.
Save 0.00 € (- 0 %)

155,60 € 155,60 € 155.6 EUR

127,54 €

    This combination does not exist.


    Temporary Suspended Discontinued

    EBM QLN65/3600A2-3038LH tangential fan for pellet stoves. Specific for high temperatures, it is a quiet, small and very reliable product.

    The 65mm rotor create a swirling motion that generate an output air flow that is stable and uniform.

    Equivalent to the following cross-flow fans: TRIAL TAS36B5-004 - COPREL TFR65-360.

    For stoves:

    • CTL

    • KARMEK ONE ref. SML661-00 mod. Alice - Alice canalizzata - Berlino 1 - Firenze Plus - Lucca Plus - Stoccolma - Stoccolma Plus

    • PIAZZETTA

    • PRINCE

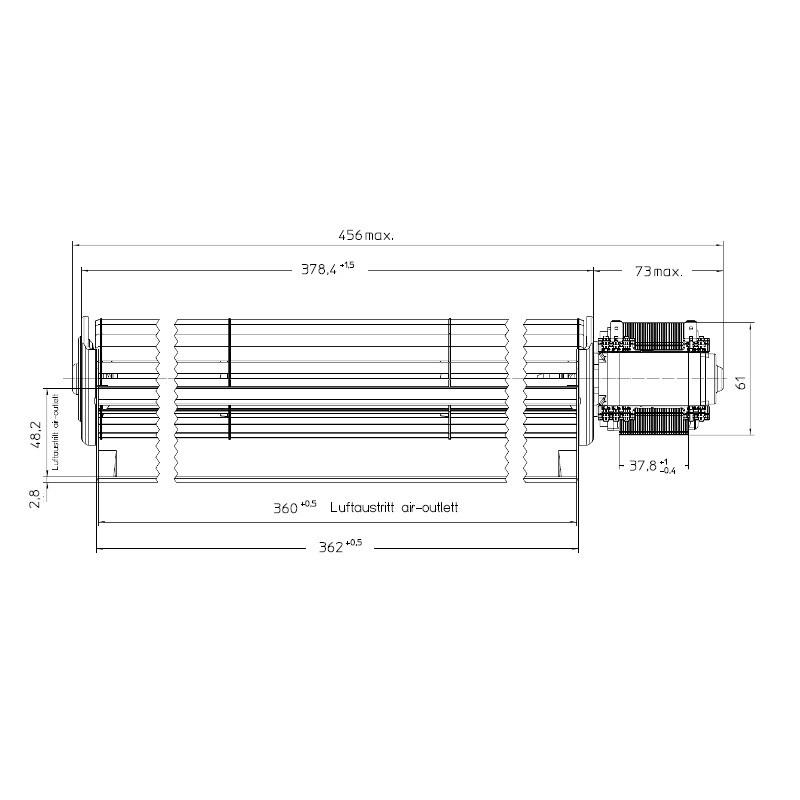

    Technical data

    General data
    Impeller diameter65 mm
    Impeller length360 mm
    Airflow rate380 m3/h
    Nozzle width360 mm
    Nozzle height50 mm
    Power supply
    Power consumption78 W
    Power supply230/1/50 V/Ø/Hz
    Physical Dimensions
    Dimensions (L x W x H) 0.0 x 0.0 x 0.0 mm
    Net Weight 3.3 kg
