TGA 80/1-360/35 EMMEVI - FERGAS 153503 tangential fan for pellet stoves. Specific for high temperatures, it is a quiet, small and very reliable product.
Equivalent to the following EMMEVI-FERGAS cross-flow fans 153508 - 151553.

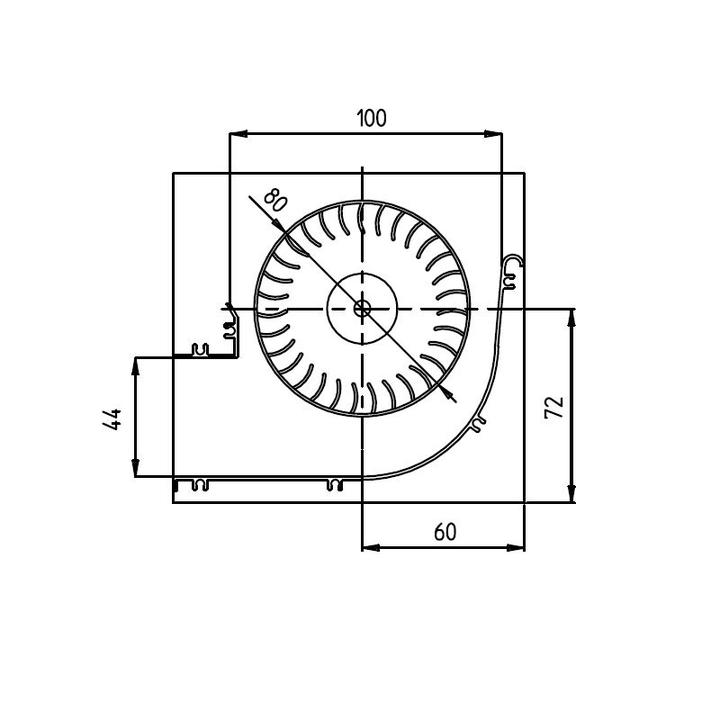

The 80mm rotor create a swirling motion that generate an output air flow that is stable and uniform.
| General data | |
| Impeller diameter | 80 mm |
| Impeller length | 360 mm |
| Airflow rate | 302 m3/h |
| Nozzle width | 370 mm |
| Nozzle height | 44 mm |
| Power supply | |
| Power consumption | 48 W |
| Power supply | 230/1/50 V/Ø/Hz |
| Physical Dimensions | |
| Dimensions (L x W x H) | 0.0 x 0.0 x 0.0 mm |
| Net Weight | 3.4 kg |
