Tangential fan VarmoTech 153503

Tangential fan with 80 mm impeller.
Save 0.00 (- 0 %)

177,30 € 177,30 € 177.3 EUR

145,33 €

    This combination does not exist.


    Temporary Suspended Discontinued

    TGA 80/1-360/35 EMMEVI - FERGAS 153503 tangential fan for pellet stoves. Specific for high temperatures, it is a quiet, small and very reliable product.

    Equivalent to the following EMMEVI-FERGAS cross-flow fans 153508 - 151553.

    The 80mm rotor create a swirling motion that generate an output air flow that is stable and uniform.

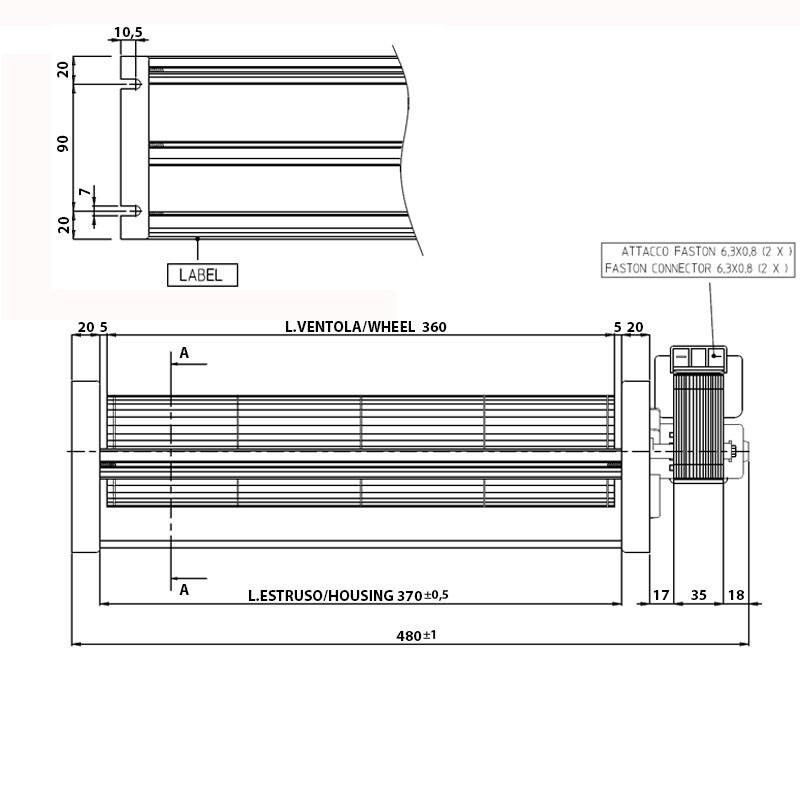

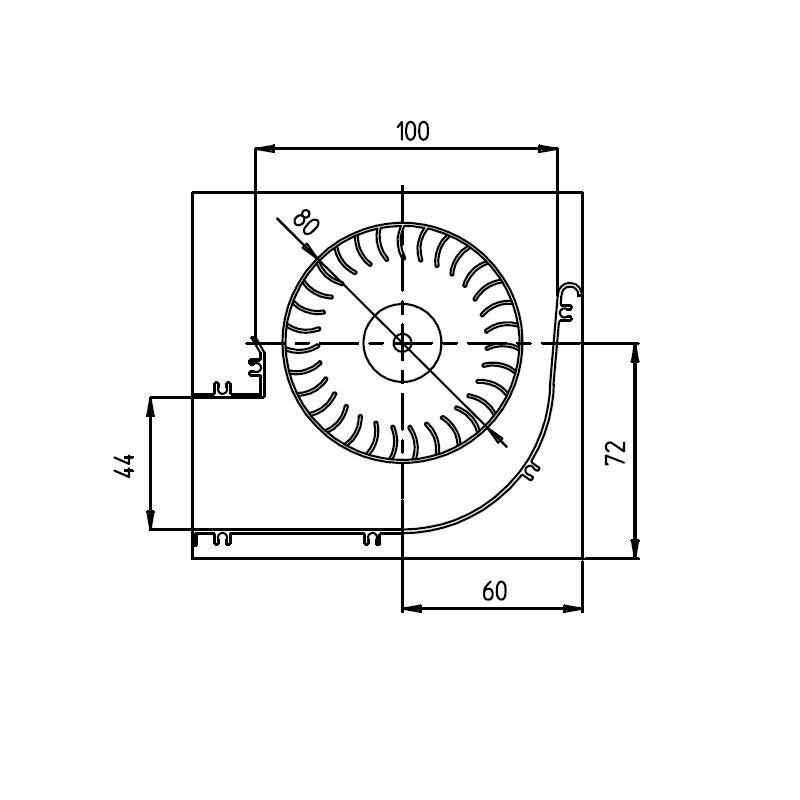

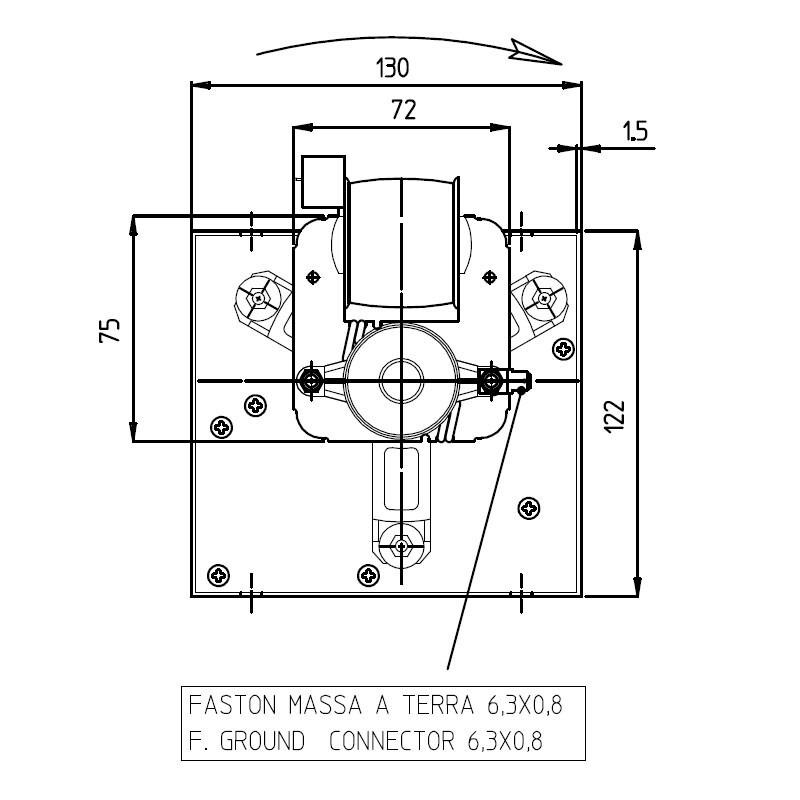

    Technical data

    General data
    Impeller diameter80 mm
    Impeller length360 mm
    Airflow rate302 m3/h
    Nozzle width370 mm
    Nozzle height44 mm
    Power supply
    Power consumption48 W
    Power supply230/1/50 V/Ø/Hz
    Physical Dimensions
    Dimensions (L x W x H) 0.0 x 0.0 x 0.0 mm
    Net Weight 3.4 kg
