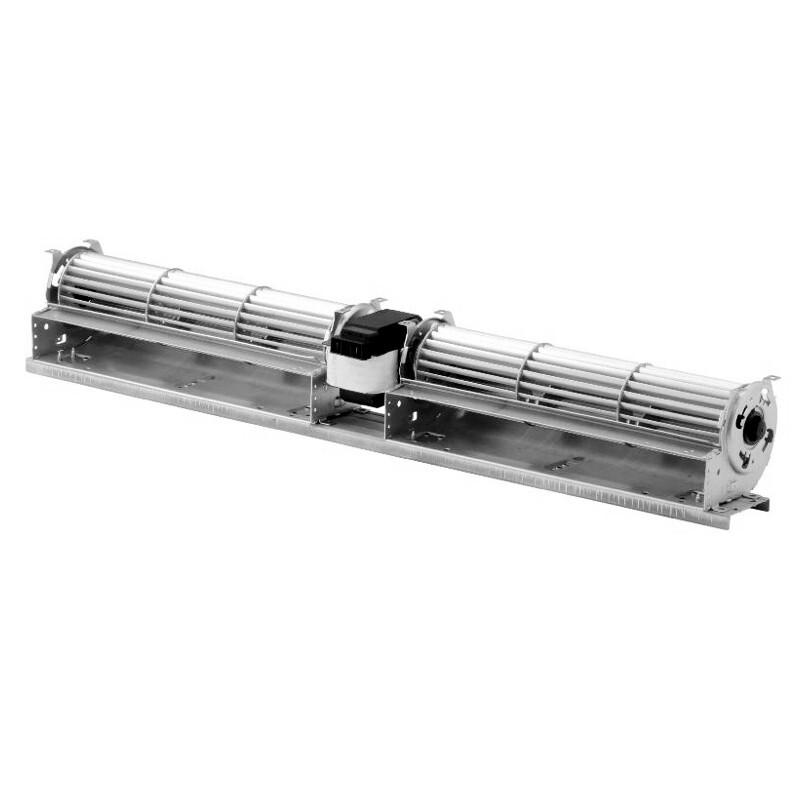

TGD 60/1-270/30 EMMEVI - FERGAS 120102 Cross-flow fan with double blower for pellet stoves. Specific for high temperatures, it is a quiet, small and very reliable product.
Equivalent to the following EMMEVI-FERGAS cross-flow fans 120117 - 120121 - 120122 -120100 - 120103 - 120104 - 120105 - 120113 - 120115 - 120116.
The 60mm rotor create a swirling motion that generate an output air flow that is stable and uniform.
| General data | |
| Impeller diameter | 60 mm |
| Impeller length | 270 mm |
| Airflow rate | 248 m3/h |
| Nozzle width | 274 mm |
| Nozzle height | 40 mm |
| Power supply | |
| Power consumption | 38 W |
| Power supply | 230/1/50 V/Ø/Hz |
| Physical Dimensions | |
| Dimensions (L x W x H) | 0.0 x 0.0 x 0.0 mm |
| Net Weight | 3.8 kg |
