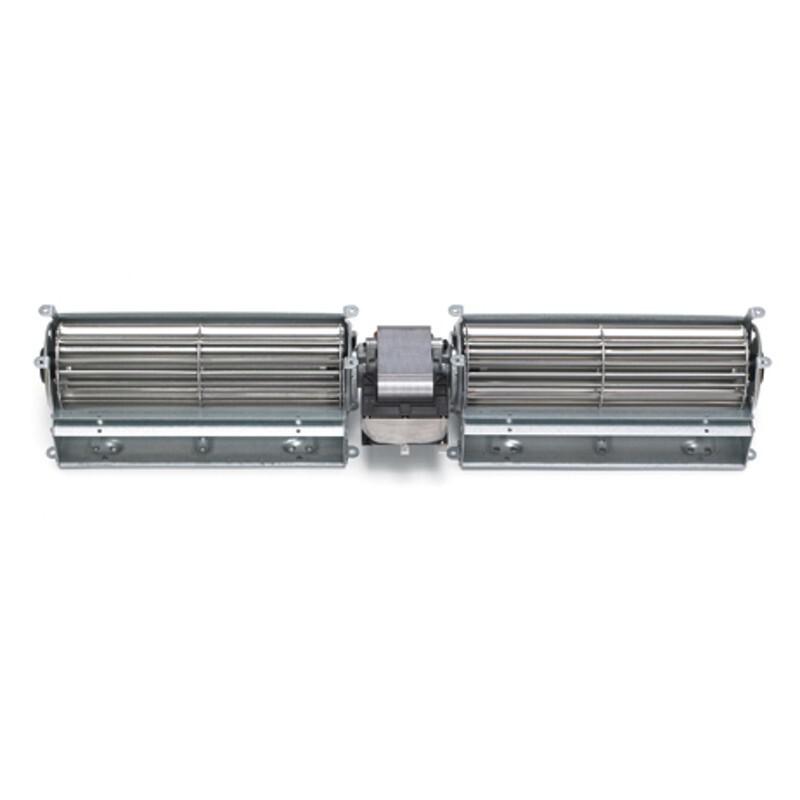

TGD 60/1-180/20 25/2600 EMMEVI - FERGAS 119509 Cross-flow fan with double blower for pellet stoves. Specific for high temperatures, it is a quiet, small and very reliable product.
Equivalent to the following EMMEVI-FERGAS cross-flow fans 119500.
The 60mm rotor create a swirling motion that generate an output air flow that is stable and uniform.
For stoves:
- ARCE ref. 1611010093 mod. Circle - Circle j Plus - Circle j - Circle Plus - Hetna - Hetna j Plus - Hetna j - Hetna Plus - Lexia - Lexia j Plus - Lexia j - Lexia Plus - Smart - Smart j
| General data | |

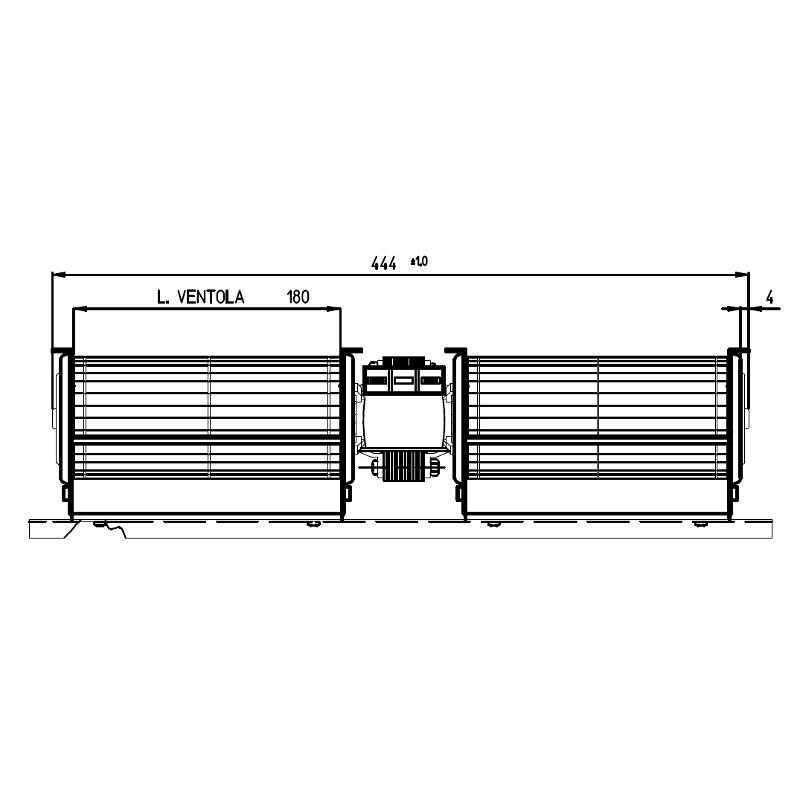

| Impeller diameter | 60 mm |
| Impeller length | 180 mm |
| Airflow rate | 168 m3/h |
| Nozzle width | 184 mm |
| Nozzle height | 40 mm |
| Power supply | |
| Power consumption | 25 W |
| Power supply | 230/1/50 V/Ø/Hz |
| Physical Dimensions | |
| Dimensions (L x W x H) | 0.0 x 0.0 x 0.0 mm |
| Net Weight | 3.4 kg |
