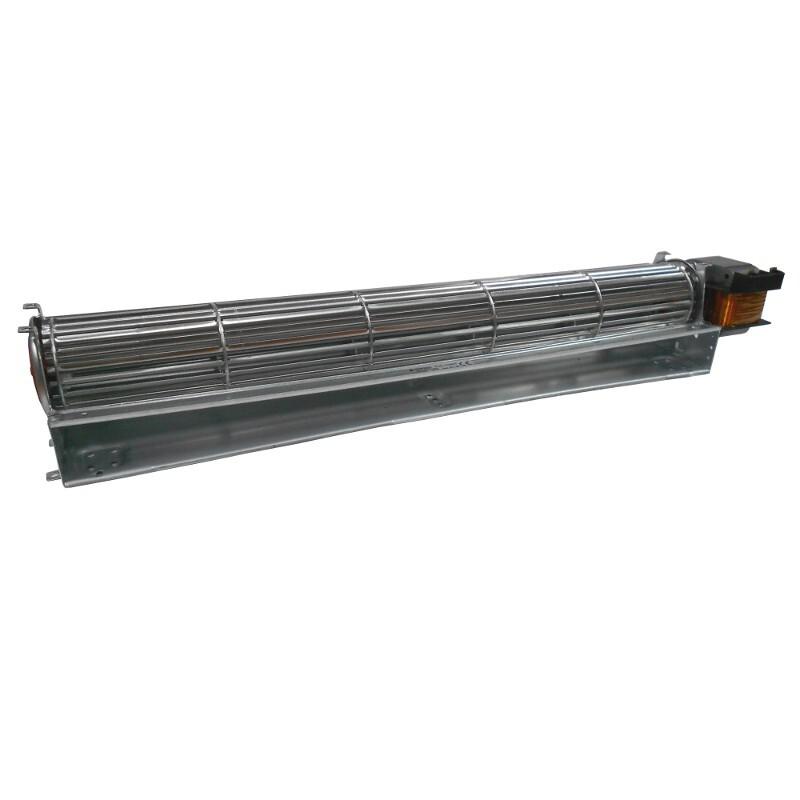

TGA 60/1-480/30 EMMEVI - FERGAS 115007 tangential fan for pellet stoves. Specific for high temperatures, it is a quiet, small and very reliable product.
Equivalent to the following EMMEVI-FERGAS cross-flow fans: 115000 - 115005 - TRIAL TAS48B-022 - TAS48B-020.
The 60mm rotor create a swirling motion that generate an output air flow that is stable and uniform.
For stoves:
-
LA NORDICA EXTRAFLAME Ref. 002271002 - 2271002 Mod. Eco Fiamma
-
LA NORDICA EXTRAFLAME Ref. 002271012 - 2271012 Mod. Comfort Plus - Confort MINI - Confort P80 - Esmeralda - Falò
-
LA NORDICA EXTRAFLAME Ref. 002271024 - 2271024 Mod. Confort MAXI - Ecologica

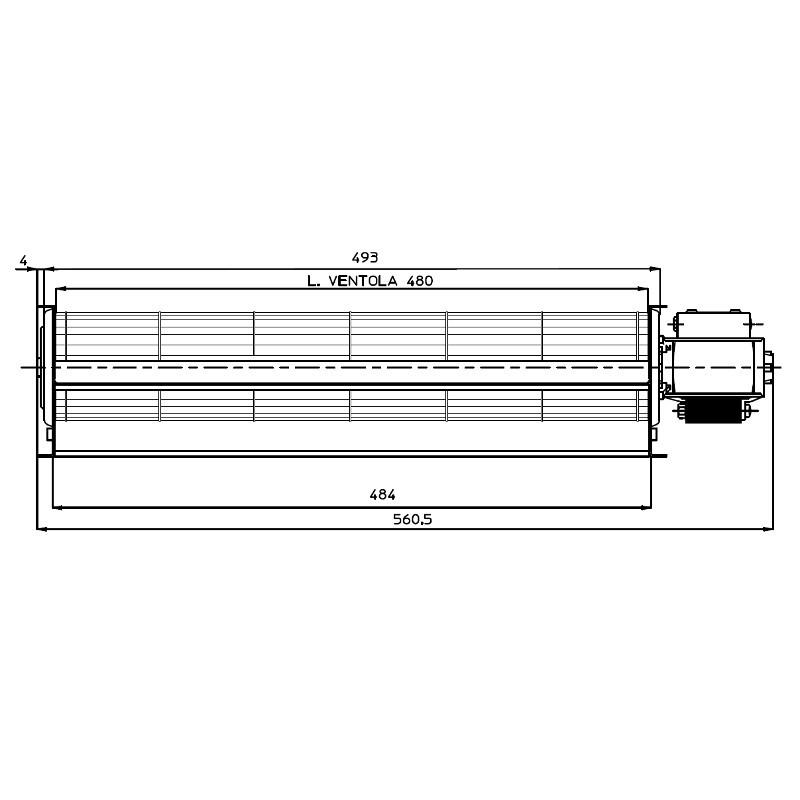

| General data | |
| Impeller diameter | 60 mm |
| Impeller length | 480 mm |
| Airflow rate | 250 m3/h |
| Nozzle width | 484 mm |
| Nozzle height | 40 mm |
| Power supply | |
| Power consumption | 47 W |
| Power supply | 230/1/50 V/Ø/Hz |
| Physical Dimensions | |
| Dimensions (L x W x H) | 0.0 x 0.0 x 0.0 mm |
| Net Weight | 3.4 kg |
