Gearmotor VarmoTech FBT3 S95 M19 1.5

SKU:

AC gearmotor 1.5 RPM with 9.5 mm shaft clockwise rotation.
Save 0.00 € (- 0 %)

142,80 € 142,80 € 142.8 EUR

117,05 €

    This combination does not exist.


    Temporary Suspended Discontinued

    Designed for low speed and high torque applications. FB1268 geared motor is suited to be used as rotor in pellet stoves.

    Technical data

    General data
    Rotation speed1,50 RPM
    Magnetic core19 mm
    Shaft diameter9,50 mm
    Shaft millingSingle
    RotationClockwise
    Output torque23 Nm
    Encoder
    Power supply
    Power consumption19 W
    Power supply230/1/50 V/Ø/Hz

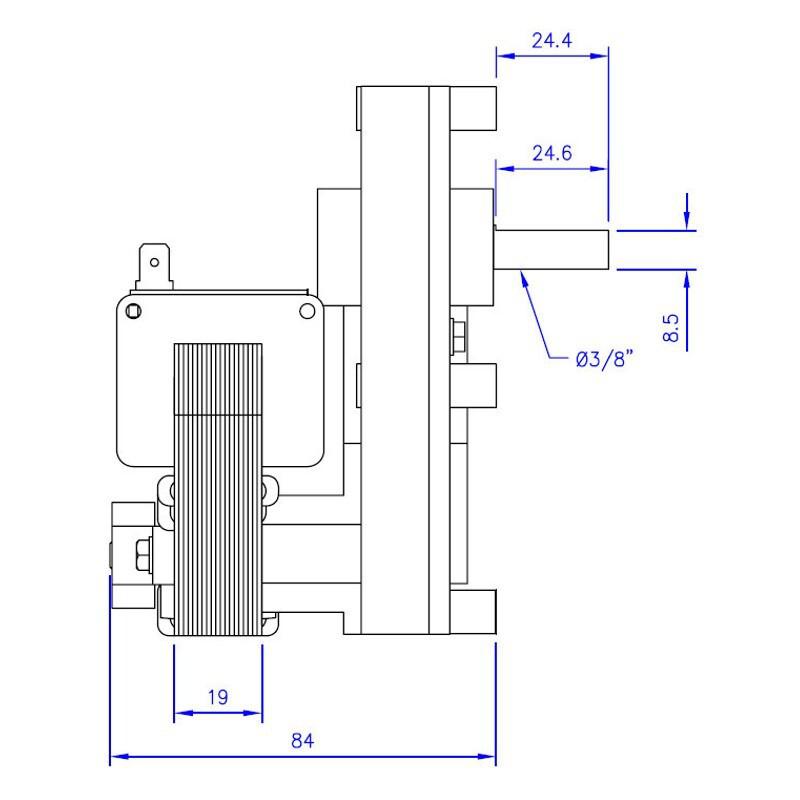

    Physical Dimensions
    Dimensions (L x W x H) 0.0 x 0.0 x 0.0 mm
    Net Weight 1.9 kg
